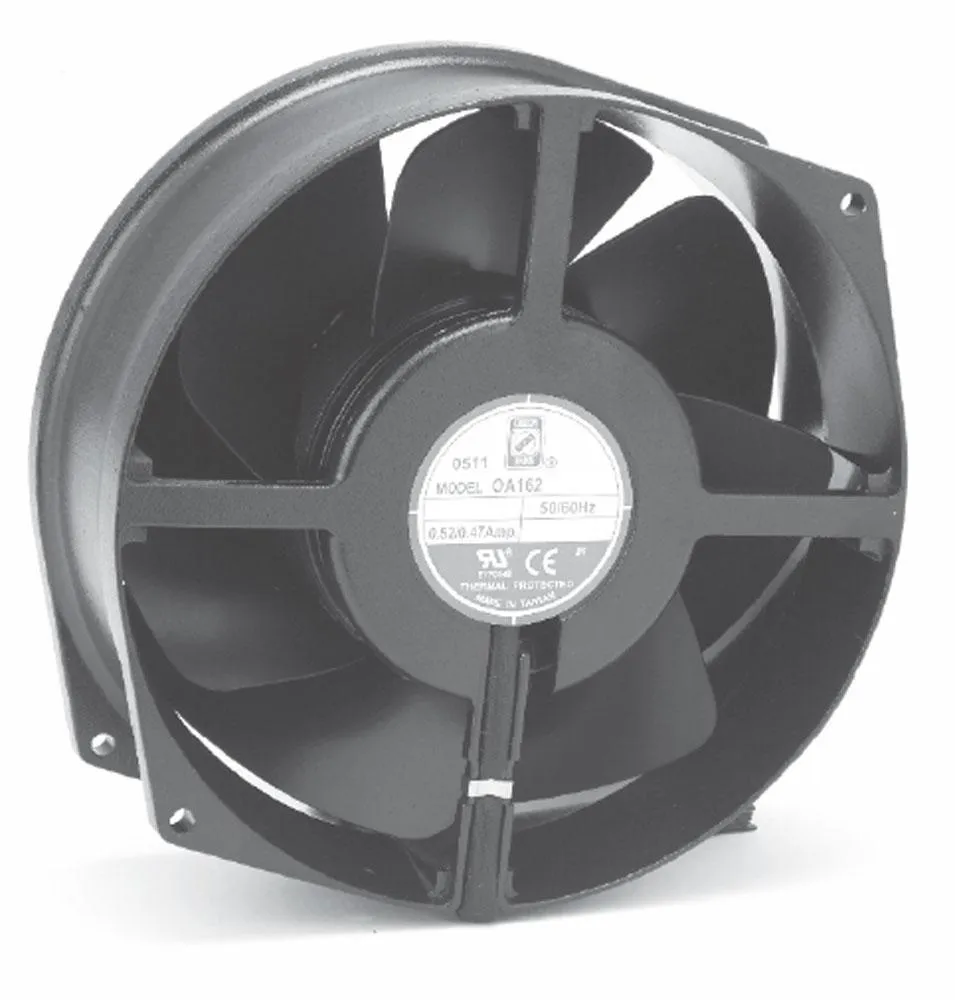

This fan is the high RPM version providing excellent airflow. These fans are generally used in industrial and other large equipment.

Specifications:

Motor: Shaded pole, impedance protected

Frame/Housing: Aluminum die-cast

Impeller: Aluminum die-cast

Bearing System: Two ball

Dielectric Strength: 1 min. at 1,500VAC, 50/60Hz

Operating Temperature: -40ºC to 70ºC

Life Expectancy at 40ºC: 60,000 Hours

Safety Approvals: UL, cUL, TUV standards

Speed: 3400 RPM

Max CFM: 241

Noise: 66dB

Voltage: 230

Voltage Range: 160~260

Watts: 35.0

Maximum Static Pressure: 0.79"

Connections: Wire Leads (300mm)

Color: Silver

Size: 172mm x 172mm x 51mm (6.77" x 6.77" x 2.00").
