Features
- High static pressure application suitable for installation
- Rugged and heavy duty
- Intended for ventilation in residential and commercial premises
- Easy to clean and install
- Can be used with duct pipes
- Centrifugal fan suitable for use in hotels,toilet and air-conditioned rooms for air exchange
- Light weight and compact size facilitates easy installation
- Coated metal casing provides stronger corrosion resistance

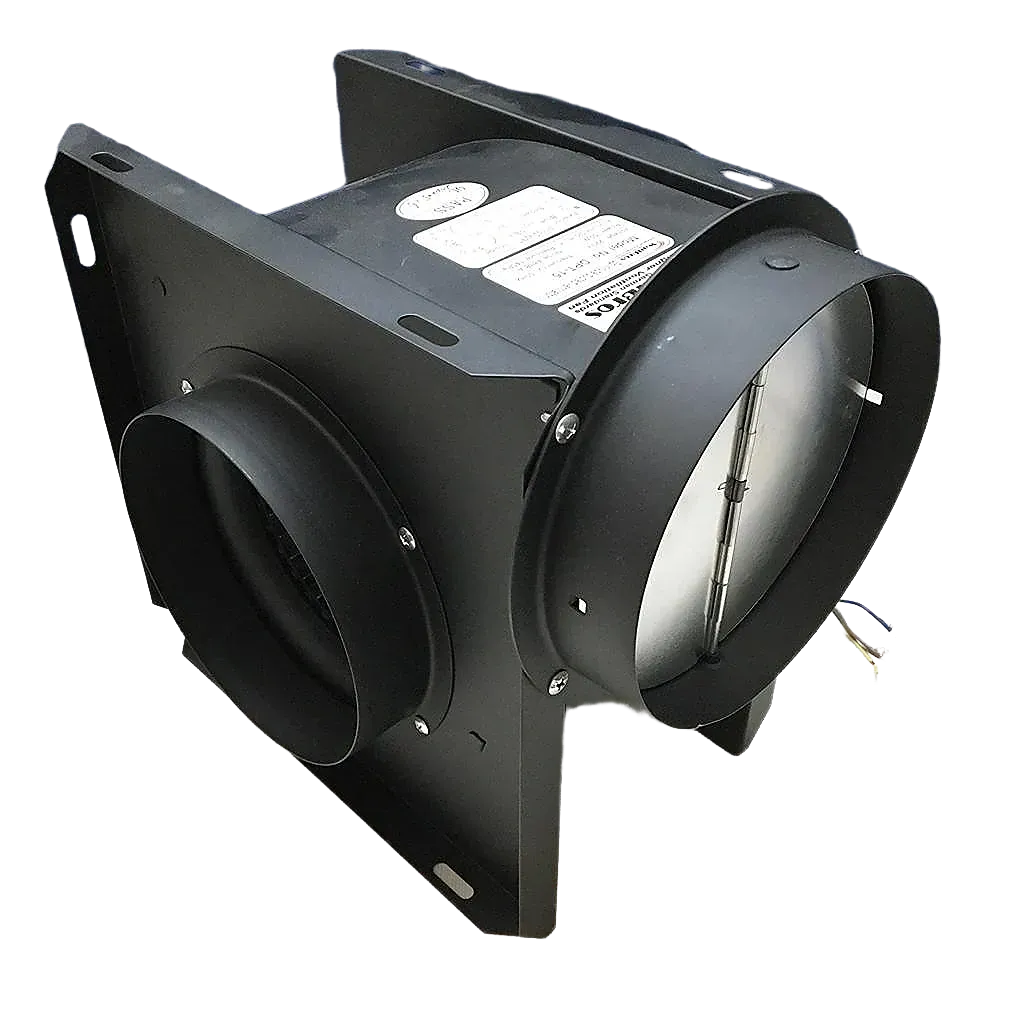

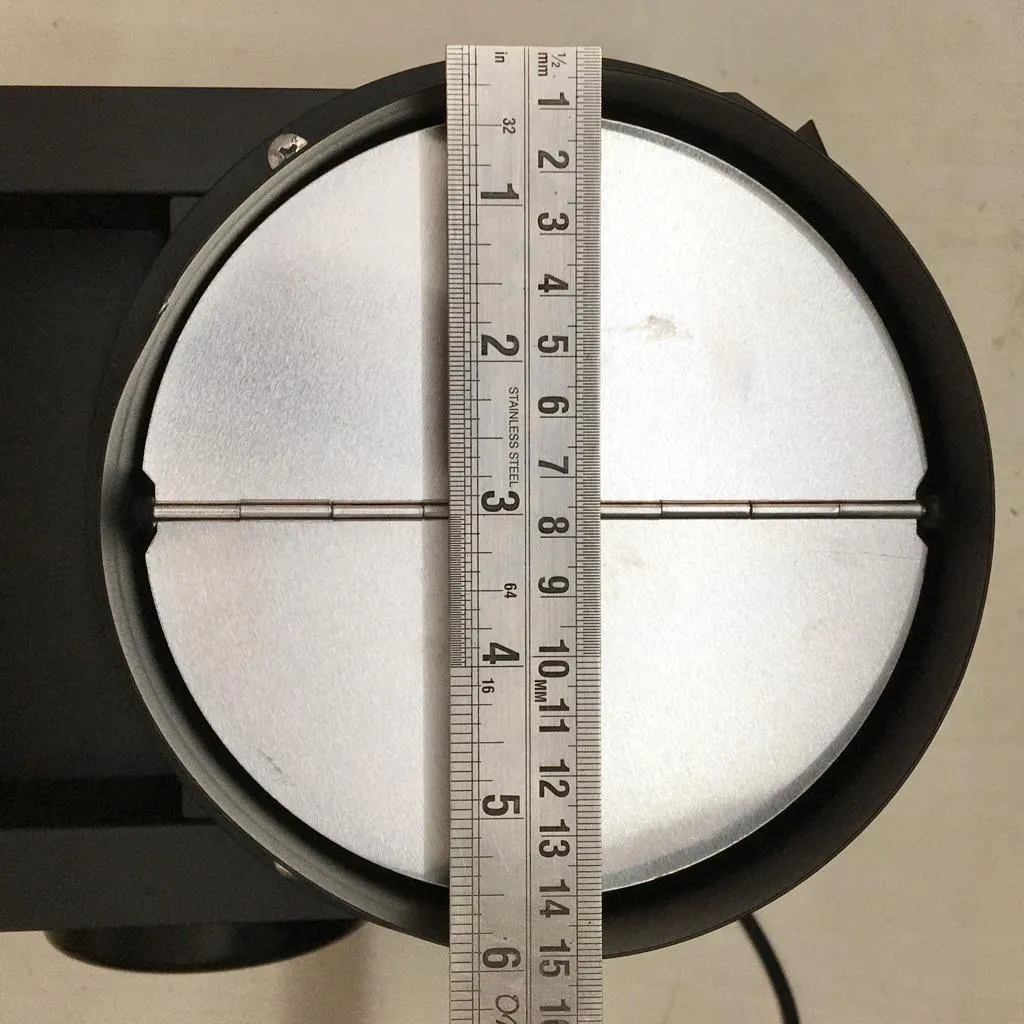

- Suction and discharge round adaptors facilitate easy installation with round duct

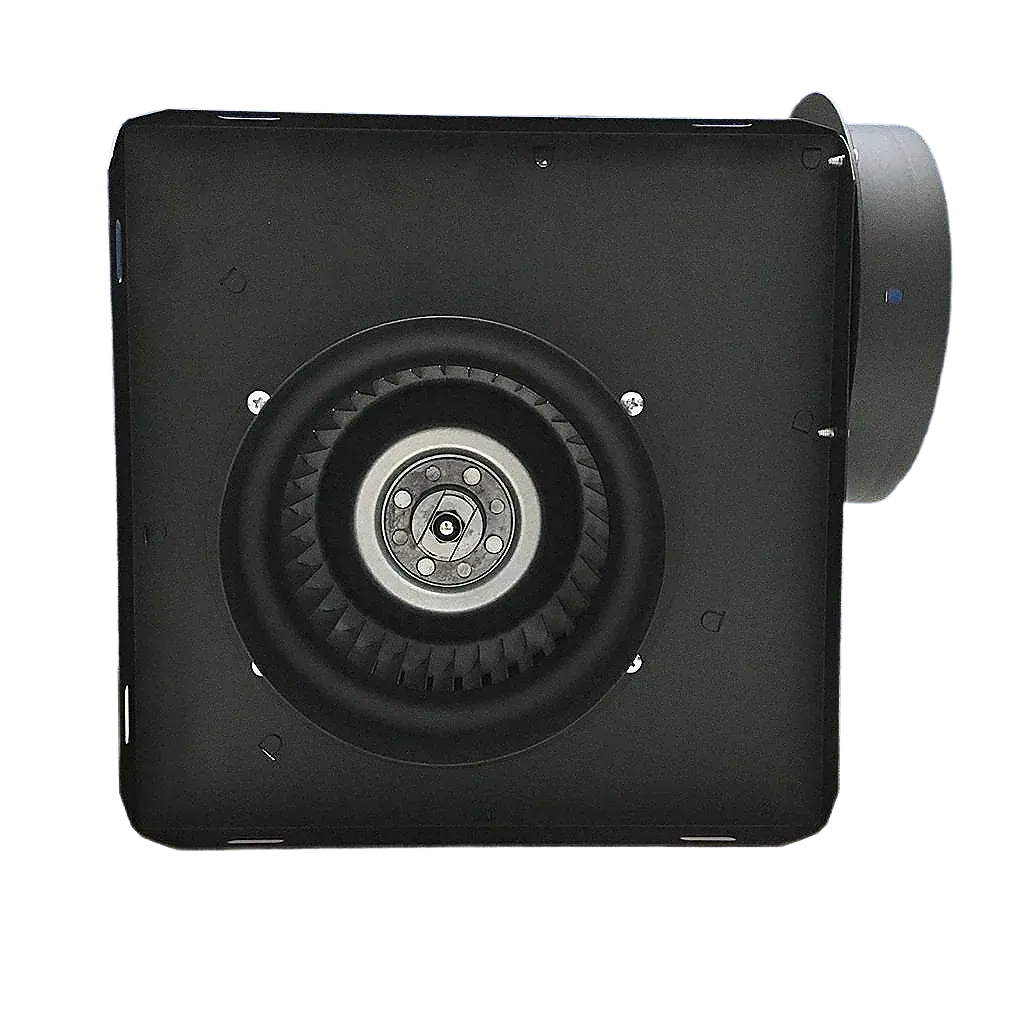

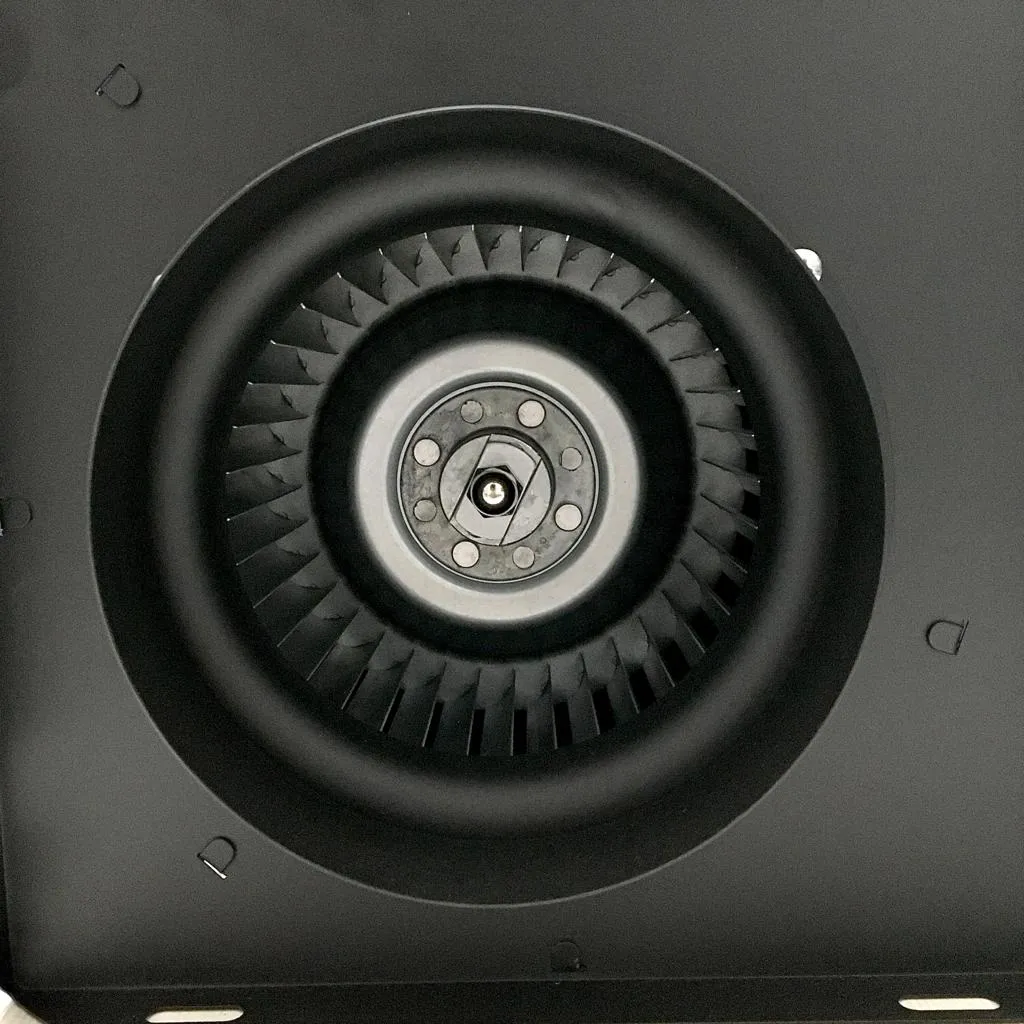

- Centrifugal forward curved sirocco fan provides larger air volume at higher static pressure
- Quiet and energy efficient

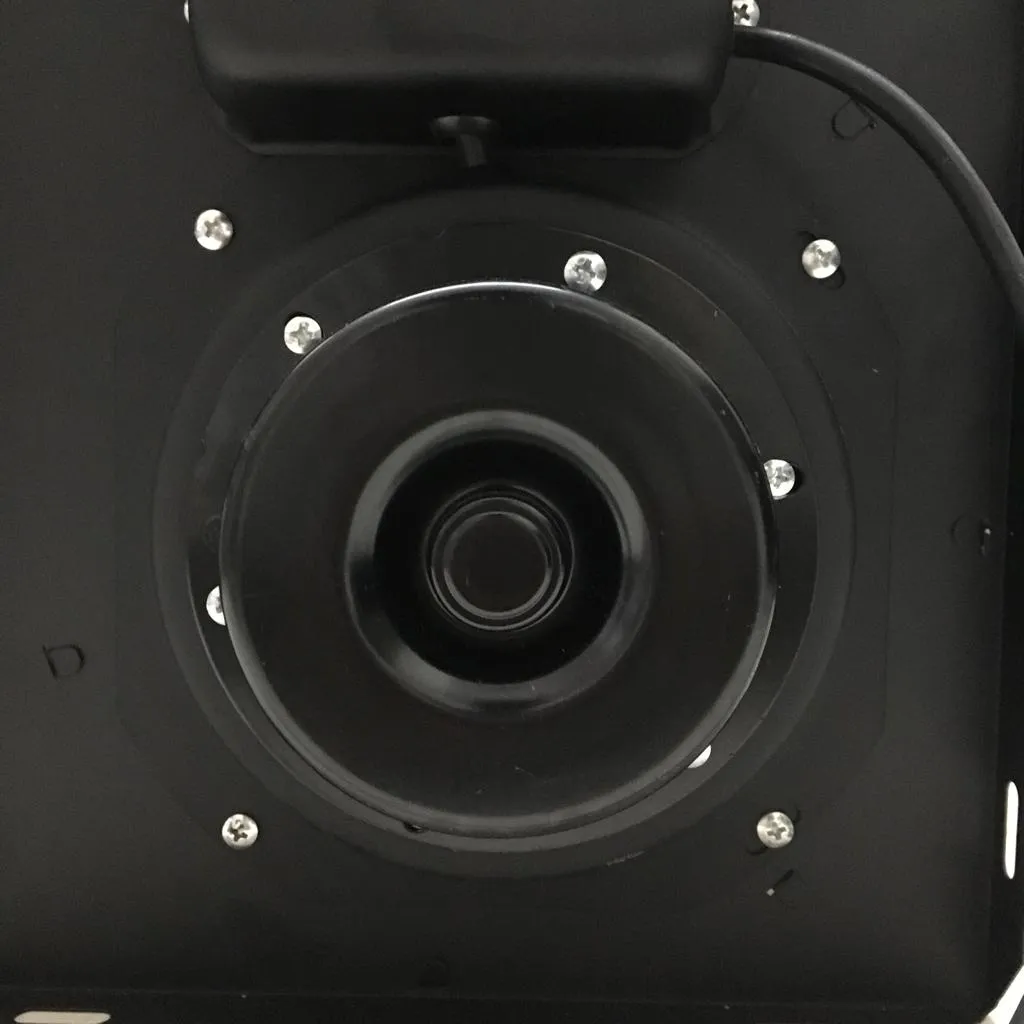

- High efficiency single phase, moisture-proof, dust proof totally enclosed motor with permanently self-lubricated bearing.
Material :- Metal.

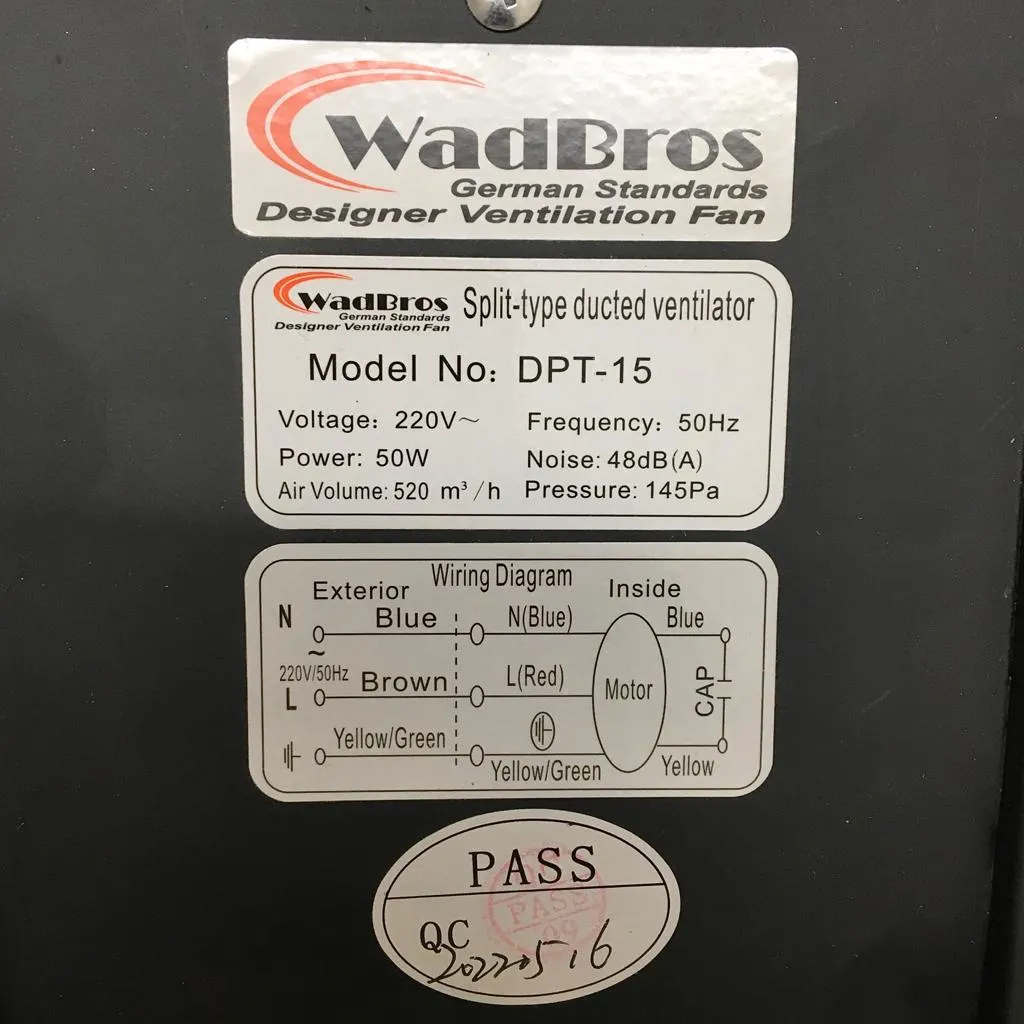

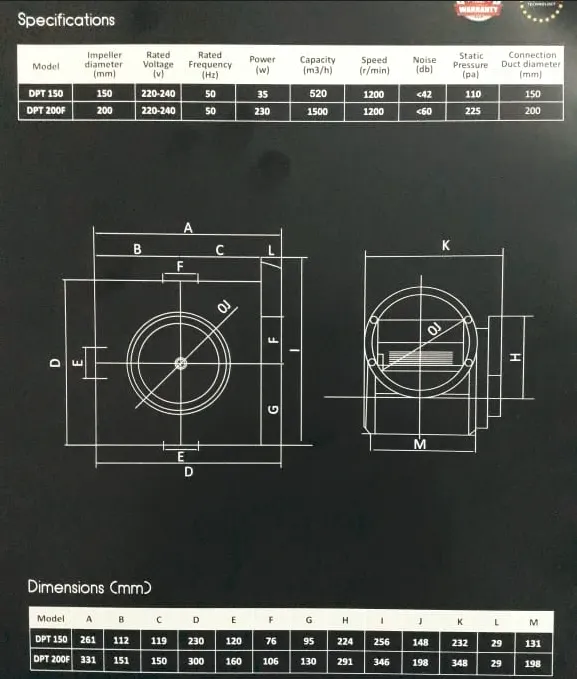

| Model & Size | DPT 150 | DPT 200 F |
|
Rated Voltage (v) Frequency(Hz) |
220-240 50 |
220-240 50 |
| Power (w) | 35 | 230 |
| Speed ( r/min ) |
1200 |
1200 |
| Airflow (m3/h) | 520 | 1500 |
| Noise (db) | 42 |
60 |

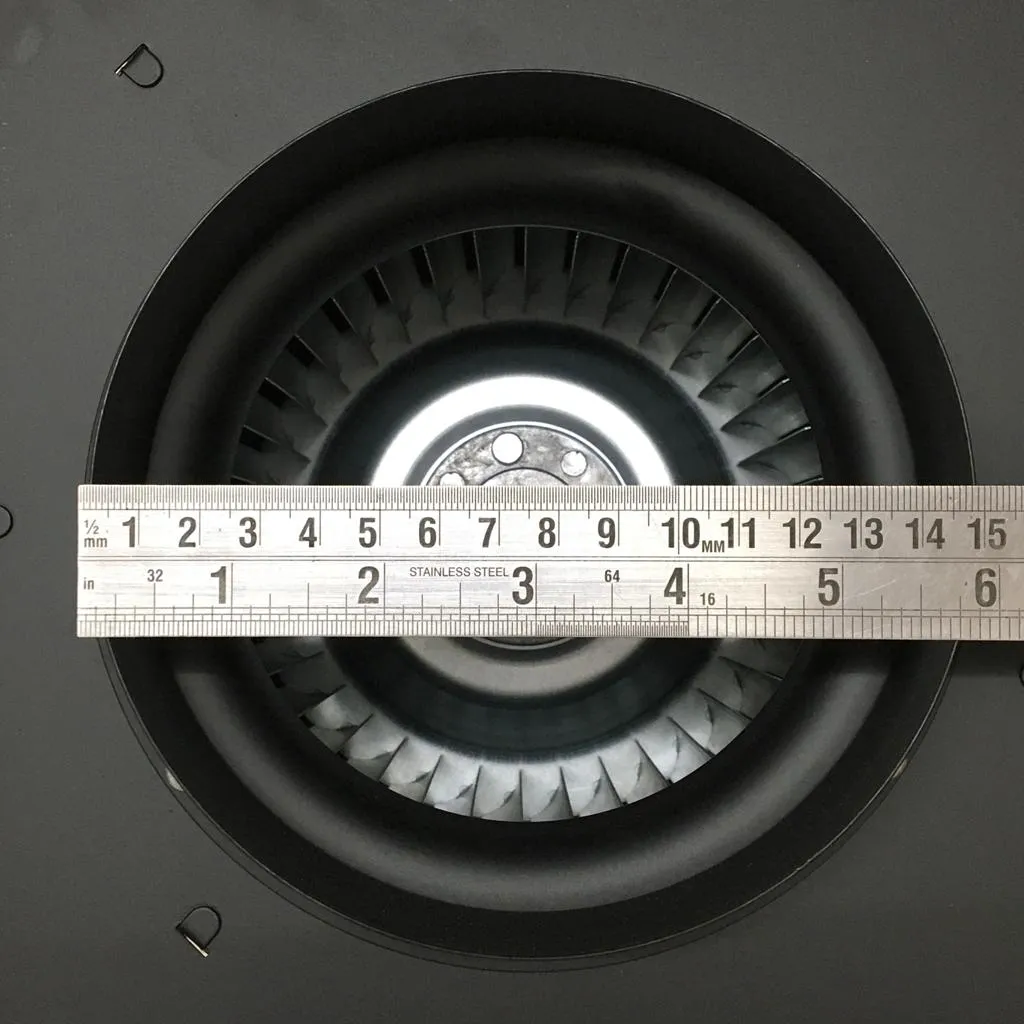

| Impeller Diameter (mm) | 261 | 331 |
| Connection Duct Diameter (mm) | 150 | 200 |
| Static Pressure(pa) | 110 | 225 |
Note :- Product color may slightly vary due to photographic lighting effect.
