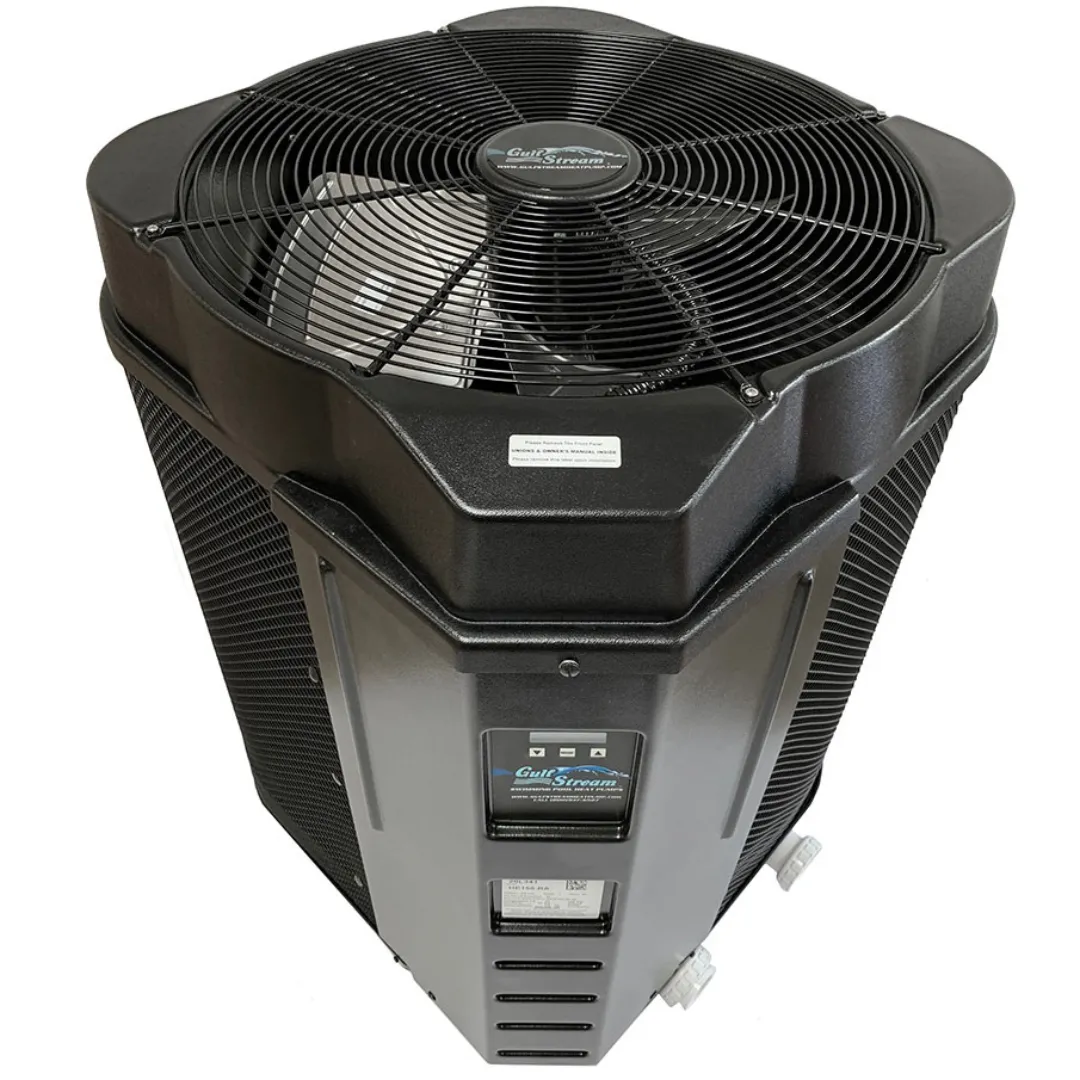

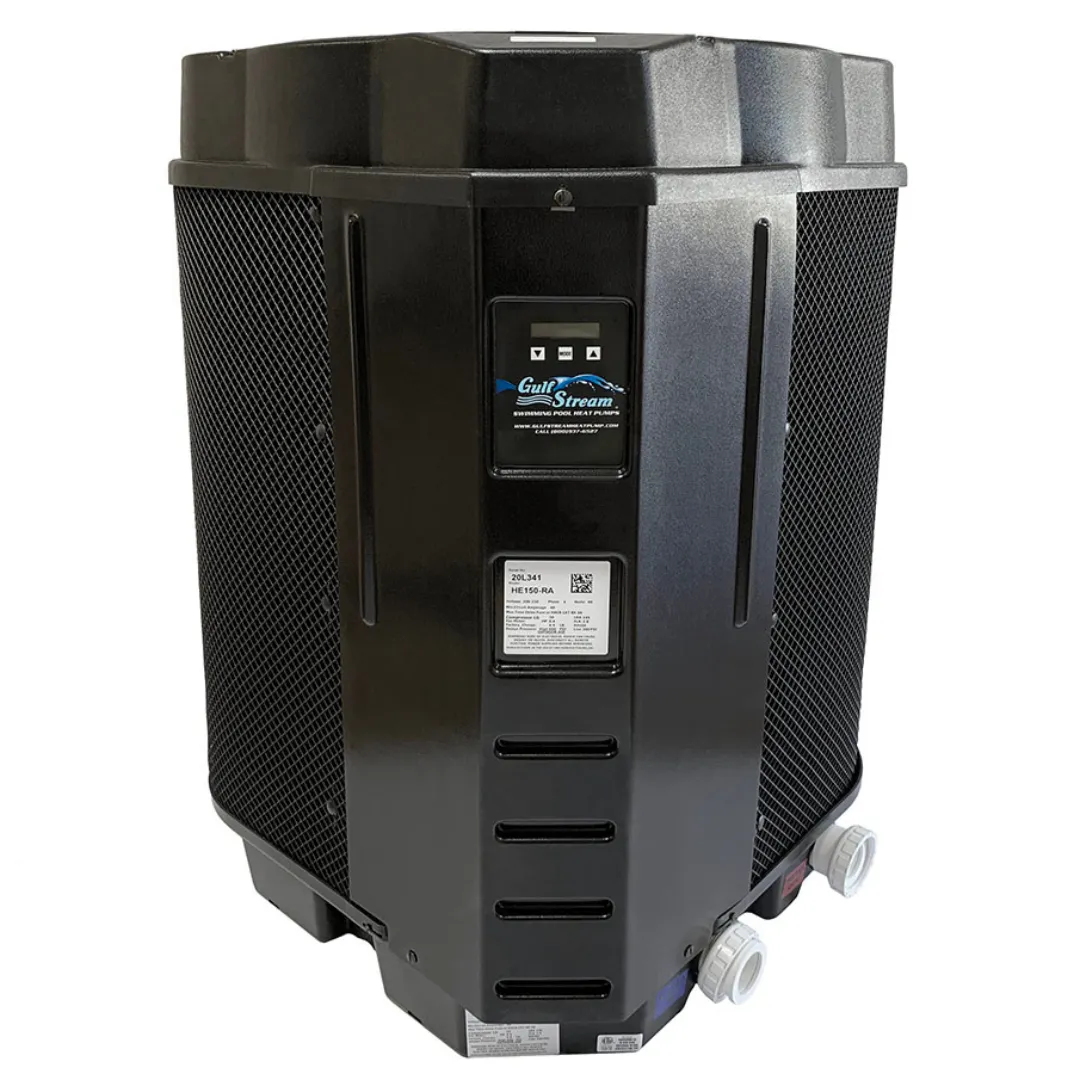

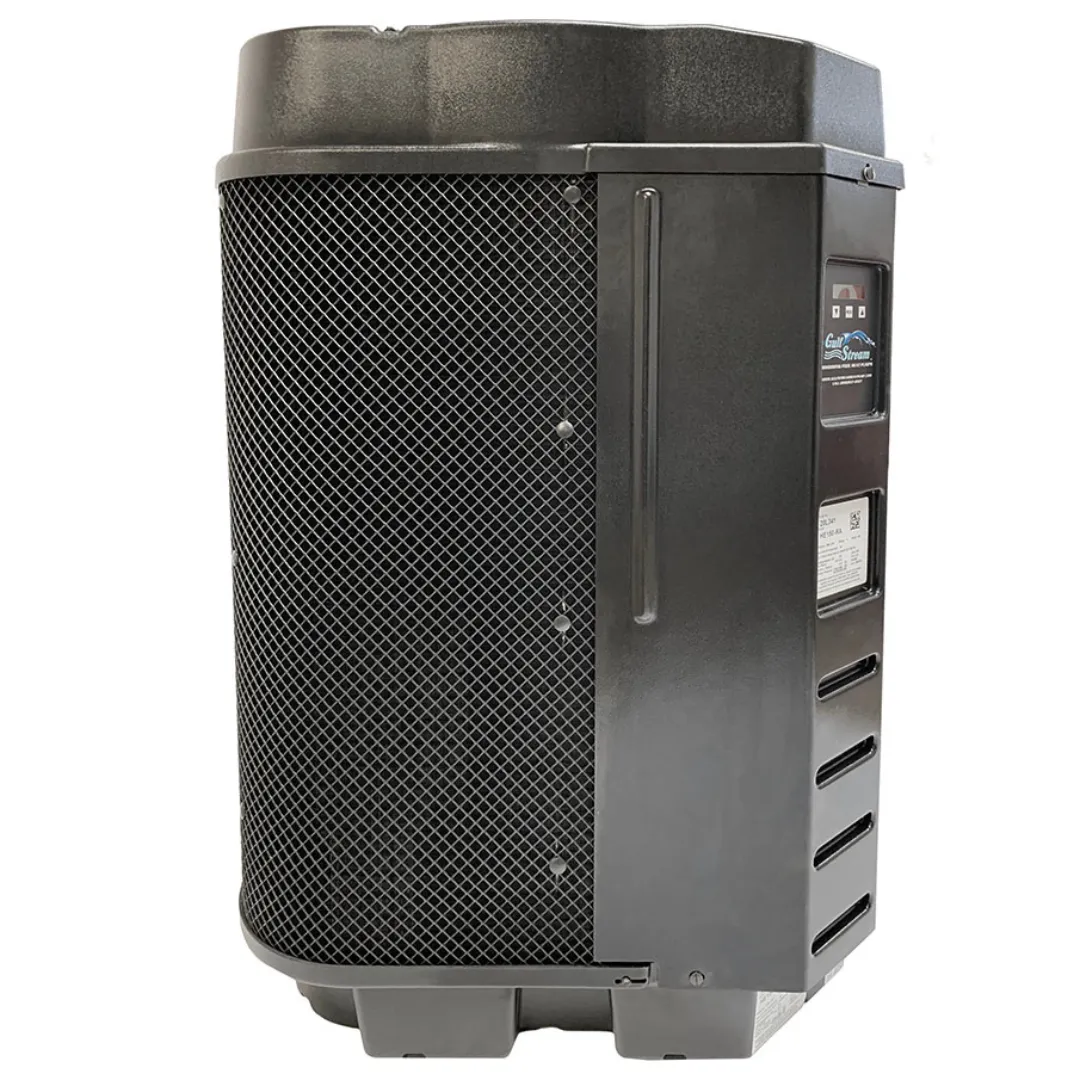

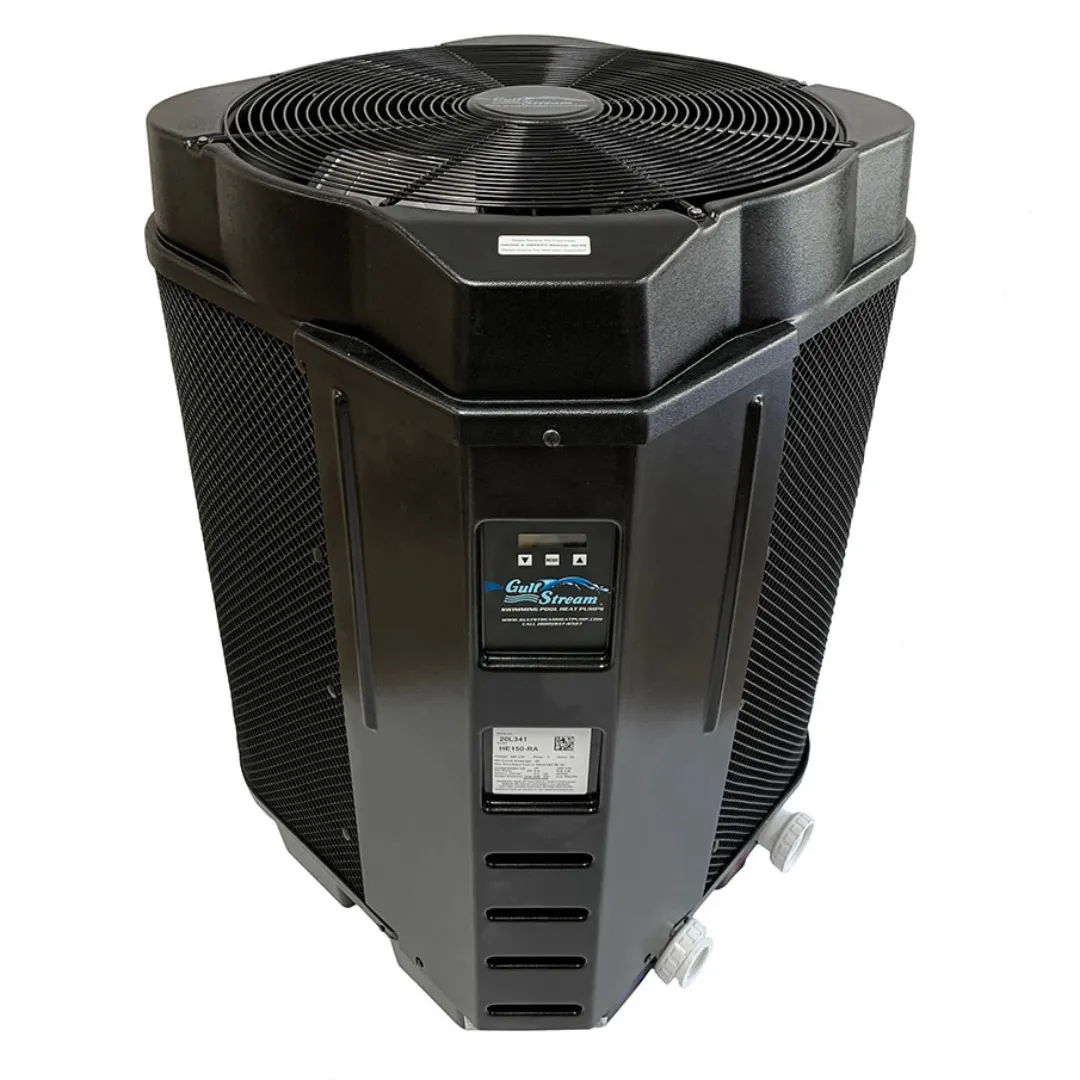

Gulfstream has designed the HE150 RA heat pump to efficiently heat your pool while minimizing costs. Its patented refrigerant metering system ensures high efficiency, particularly in colder conditions. Optimized for R-410A Refrigerant, it effectively regulates flow through the evaporator coil, resulting in maximum efficiency at low temperatures and reduced operating expenses. The HE150 RA is also available in both 3 Phase and Heat/Cool options.
Features:
- Applications: Up to 27,000 gallons* or 800 square feet
- Titanium Turbo Heat Exchanger
- Efficient Scroll Compressor
- Super-Quiet 8 Pole Emerson Fan Motor
- Higher efficiency in colder weather
- Quiet – as low as 56 decibels at full operation
- No-Rust ABS Cabinet

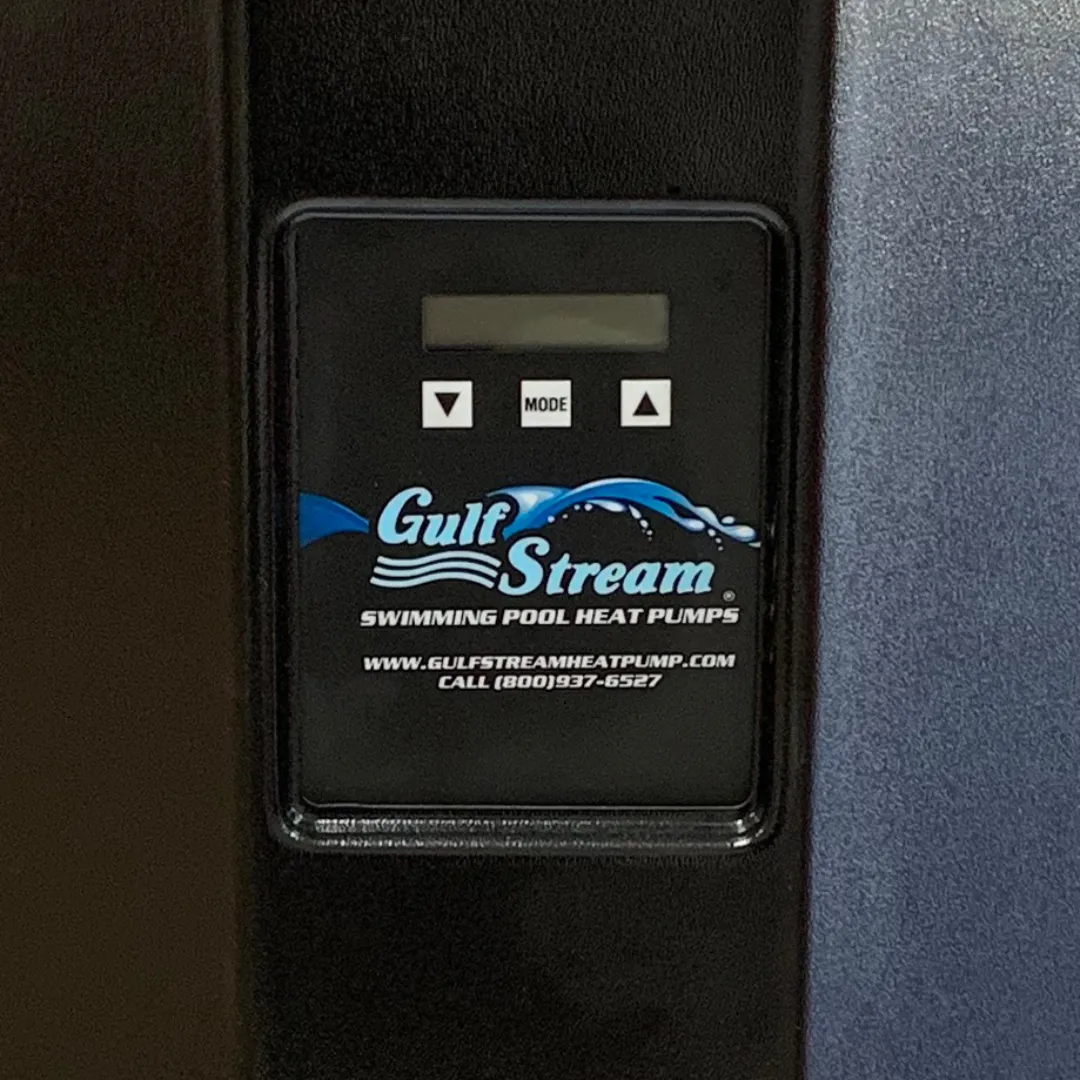

- Digital Diagnostic LCD Display reads in real words
- Super-Sized Evaporator Coil (20 square feet of wrap-around coil)
- Patented Refrigerant Metering System
- 2” Water flow - no need for an external bypass
- Plumbing located out of the way
- Compatible with all remote control systems
- R-410A Refrigerant is environmentally friendly
- Includes standard 2-year labor warranty
- Part Numbers: HE150-R-A, HE150 RA, HE150RA, HE 150 RA
Specifications:
- Brand: Gulfstream
- Model Number: HE150-R-A
- COP 80/80/80: 6.2/142,000
- Minimum Circuit Ampacity: 40 Main
- Time Delay Breaker: 50
- Average Running Amps: 28
- Voltage: 208-230
- Phase: 1
- Hertz: 60
- Plumbing Size: 2" Union
- Min/Max Flow Rate: 30-70
- Recommended Flow: 45
- Fan Motor: 1/3 HP
- Fan Load Amperage: 1.8
- Fan Speed RPM: 825
- Compressor Type: Scroll
- Compressor: RLA 30
- Compressor LRA: 145
- Refrigerant: R410A
- Unit Weight: 248 lbs
- Shipping Weight: 276lbs
- Unit Dimensions: 31"x31"x46"
- Foot Print: 31"x31"
- Shipping Dimensions: 32"x31"x50"
- AHRI Testing Certification: 3694125
*Please Note: The BTU rating is the minimum heating requirement for the recommended gallons shown. This is under perfect conditions with no temperature loss. Always size up if you plan to use the heater in cool weather or without a cover. Need help? Contact us anytime - we’re here to help!
