Description

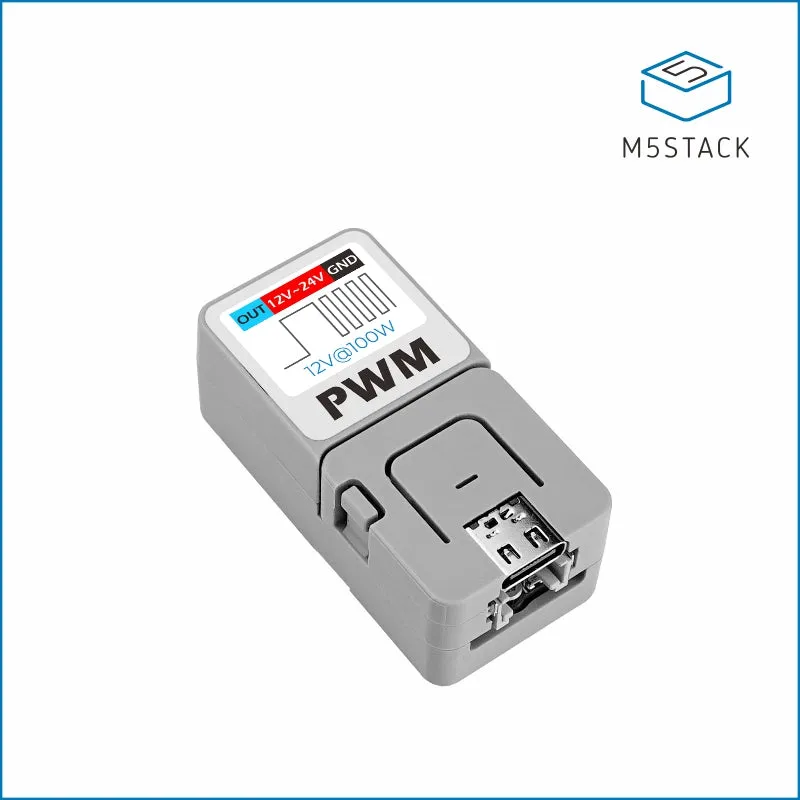

ATOM PWM is a single-channel PWM (Pulse Width Modulation) DC driver that incorporates a MOSFET with a load capacity of up to 12V@100W. It is specifically designed for high-power DC motor PWM speed control and industrial heating wire control applications.

ATOM PWM utilizes ATOM LITE as the controller, which features a built-in ESP32 microcontroller. This configuration provides several key capabilities. Firstly, it offers a wide range of PWM dynamic adjustments, including a frequency of 5 kHz and a duty cycle adjustment range of 0-100%. Additionally, the resolution can reach up to 13 bits, enabling precise control over the PWM signal.

ATOM PWM is equipped with built-in Wi-Fi functionality, allowing for easy remote control and monitoring. This feature enables users to adjust and monitor the PWM parameters wirelessly, providing convenient control options.

For ease of use and configuration, ATOM PWM supports UIFlow graphical programming. This intuitive programming environment simplifies the setup of signal output and facilitates function expansion. Users can easily configure the desired PWM parameters and customize the driver's behavior according to their specific requirements.

Product Features

Single channel low latency PWM signal output
High power MOSFET, output capacity 12V@100W

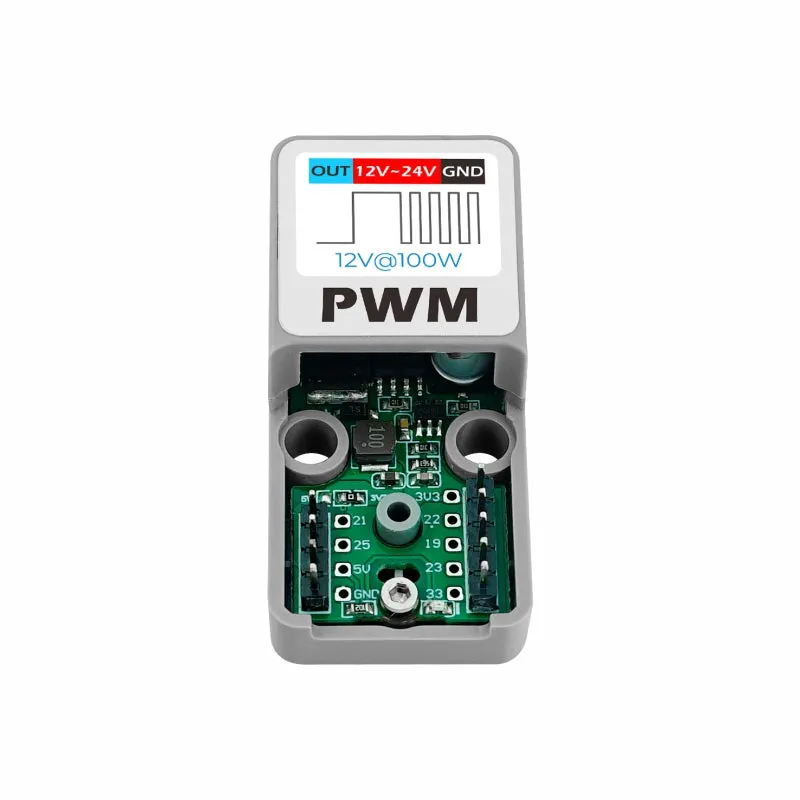

Reserved 1xGROVE expansion interface
Built-in DC-DC (12V->5V) conversion circuit

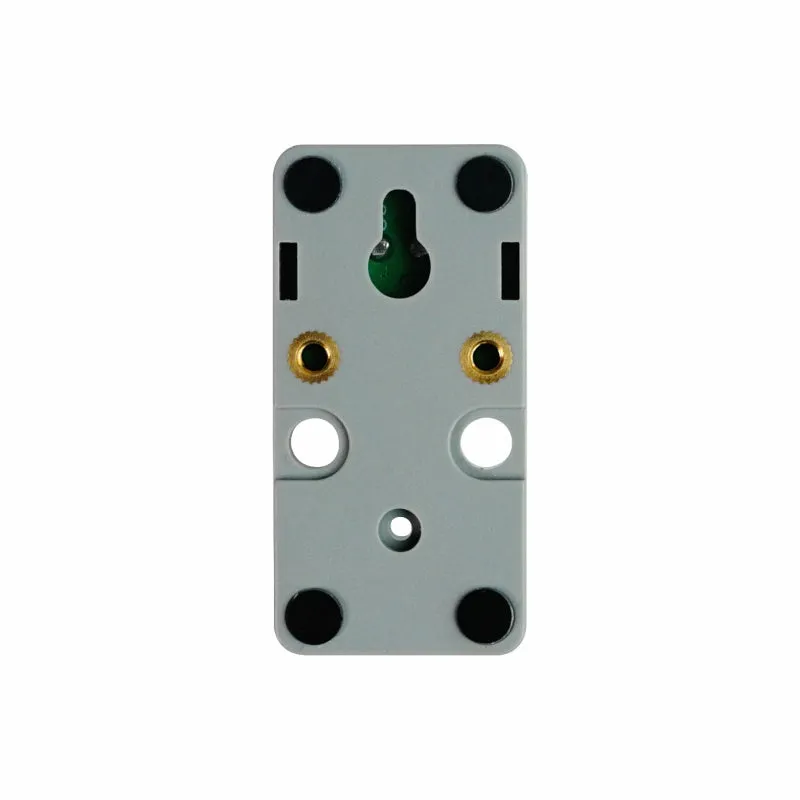

Easy installation, simple operation
All-in-one design with protective cover
Development platform: Arduino/UIFlow

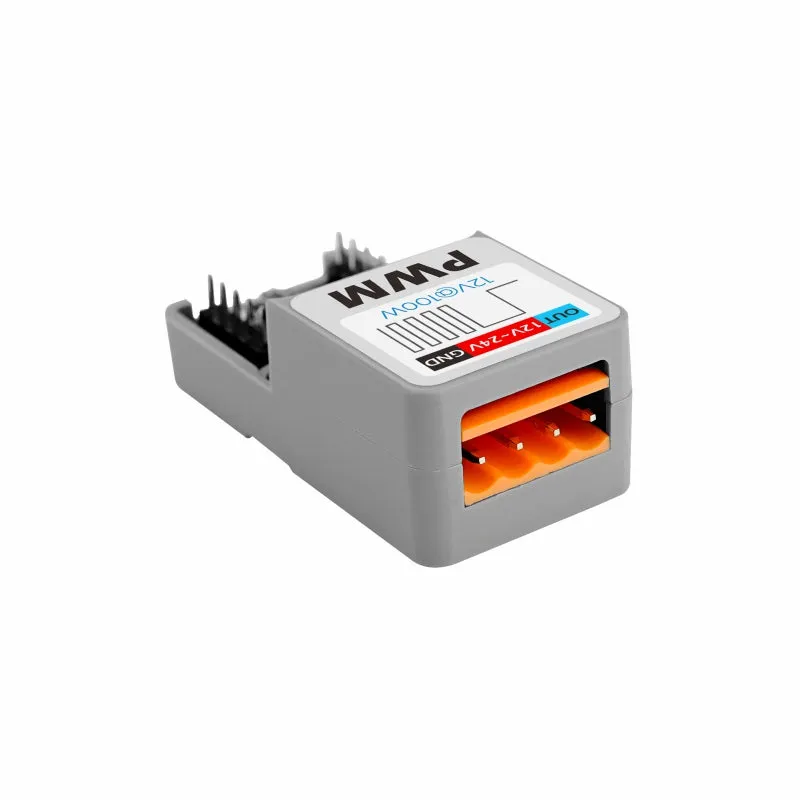

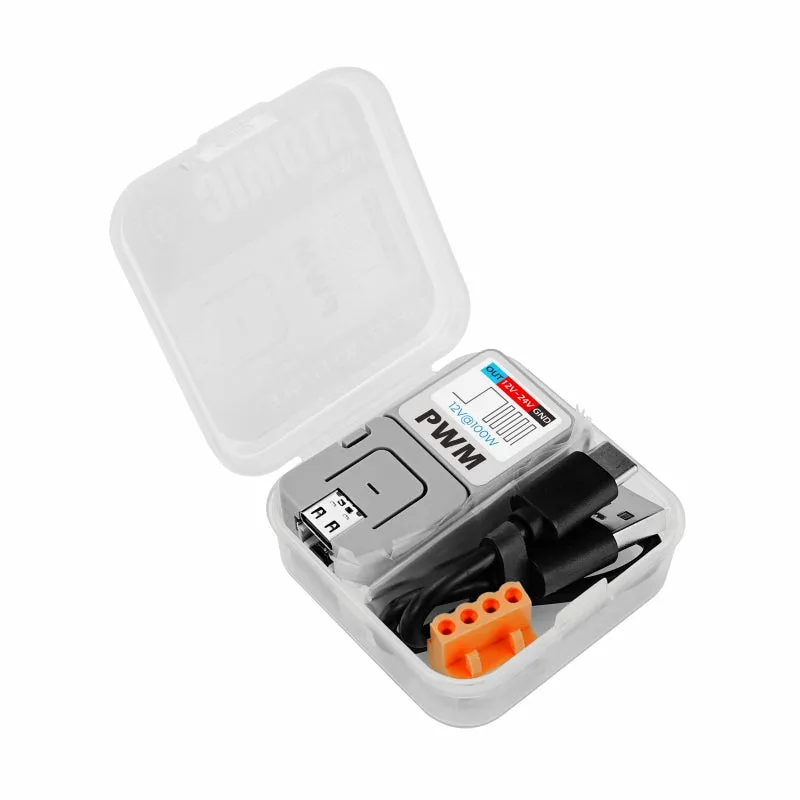

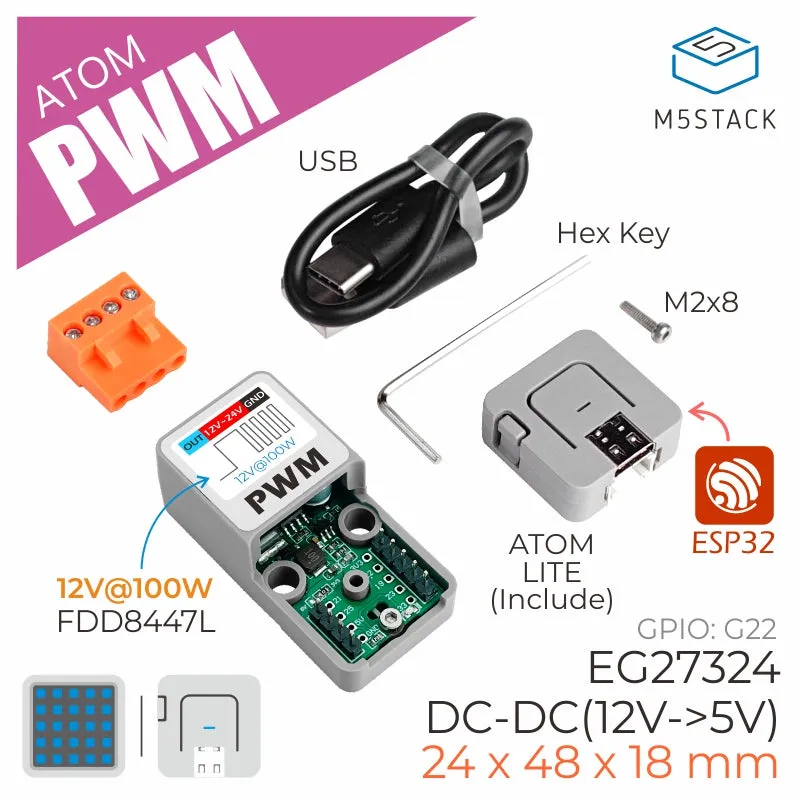

Included

1x ATOM PWM
1x ATOM LITE
1x M2 Hex Wrench
1x M2*8 cup head Machine screw
1x 3.96-4P terminal
1x TYPE-C USB data cable (20cm)

Applications

DC motor control
Light control
Heater control
DC Load

Specifications

Specification	Parameter
Driver Chip	EG27324
MOSFET	FDD8447L
Maximum Output Power	100W
Input Voltage Range	DC 12V-24V
Number of Drive Channels	1
Net Weight	28.9g
Gross Weight	37.3g

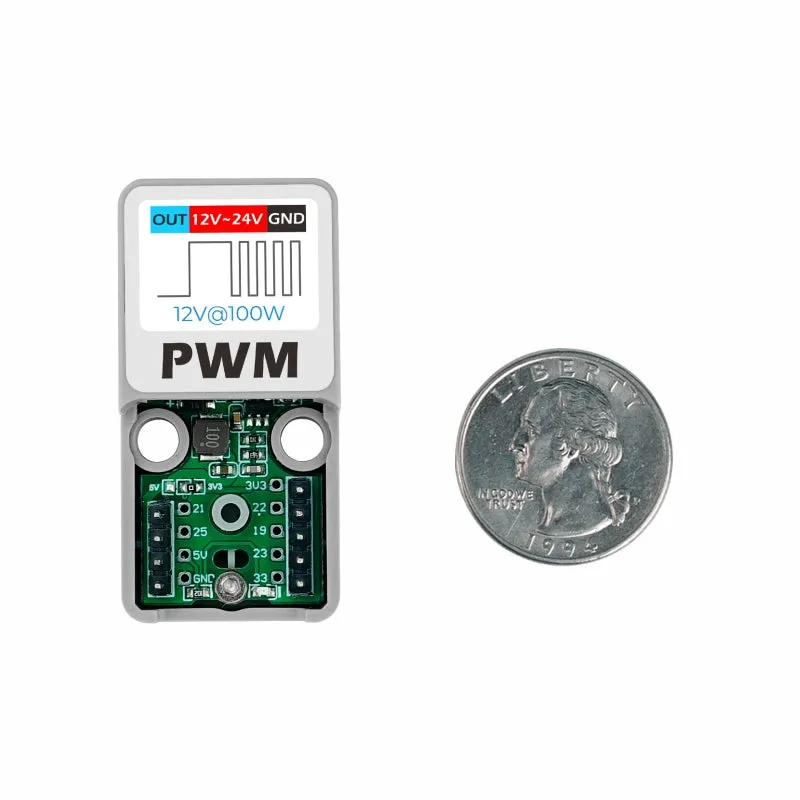

Product Dimensions	24 * 48 * 18mm
Package Size	54 * 54 * 20mm
