Features:

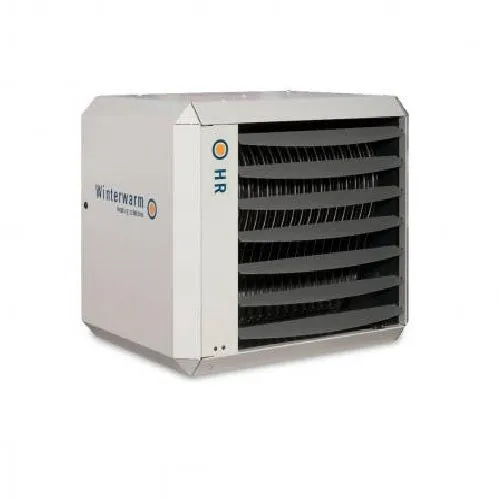

- High Efficient Unit Heater
- Energy Savings up to 25% of Conventional Heaters
- Modulating Burner & System Fan for Higher Comfort
- Temp Control for optimal air circulation
- Compact Design and Light Weight
- Easy to Install
- Unique Stainless Steel Heat Exchanger
- Modulating Clock Thermostats for 1-8 Heaters
- Fault indicator and reset function on the clock
- Low Voltage connection to thermostat
Performance Specifications:
| Commercial name: HR150 |
| Btu (nom): 151,000 |
| Btu (min): 45,000 |
| Eff @ max (%): 91,6 |
| Eff @ min. (%): 96,7 |
| Amps @ 115Vac (A): 7,0 |
| Air output (cfm): 2600 |
| m3/hr: 5.000 |
| Throw (ft): 92 |
| m3/hr: 28 |
| Gas connection G”: ½” in |
| Flue length max (ft) : 30 |
| Weight (lbs): 231 |
| Sound level (average @ 13 ft (4m)) (dBA): 48 |
